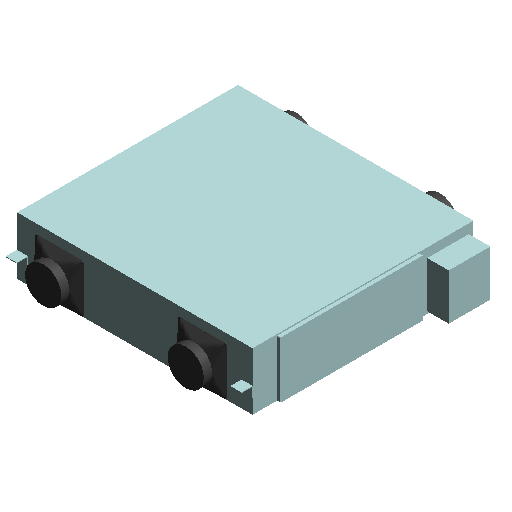

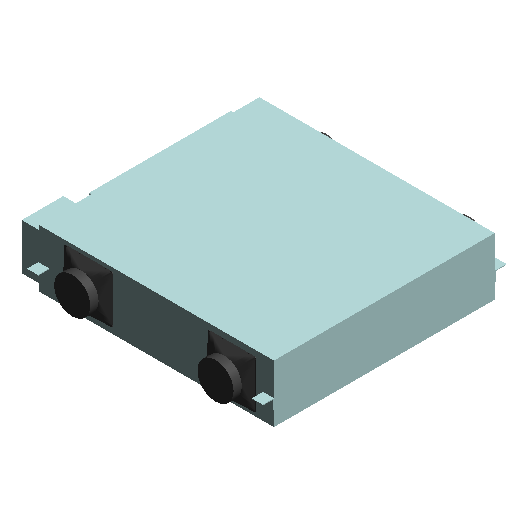

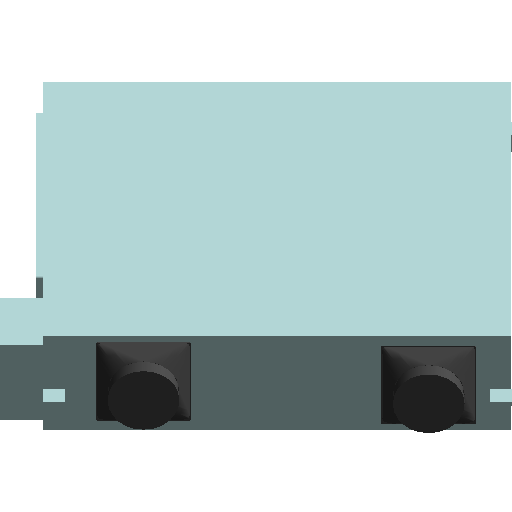

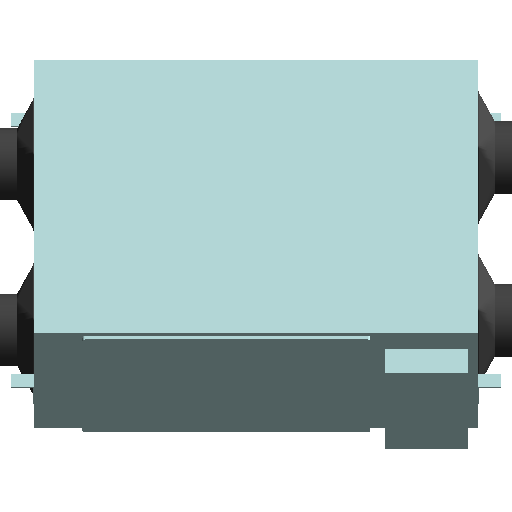

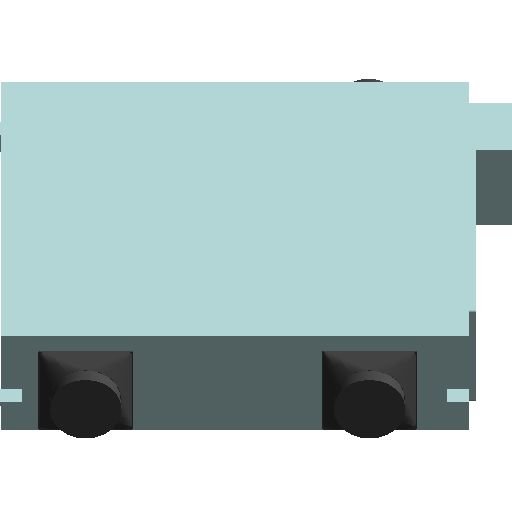

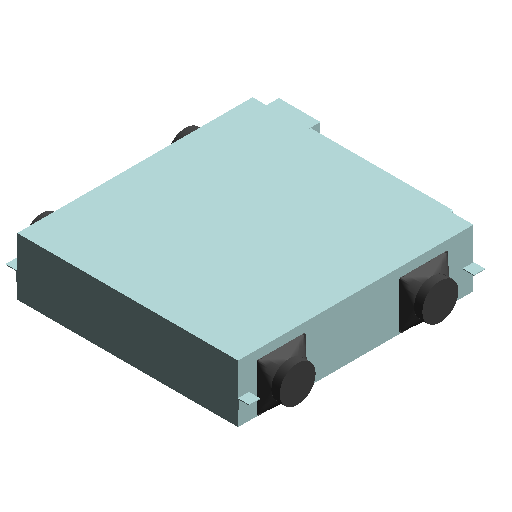

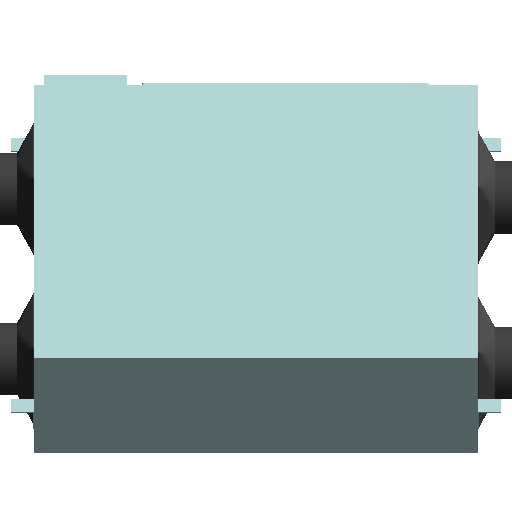

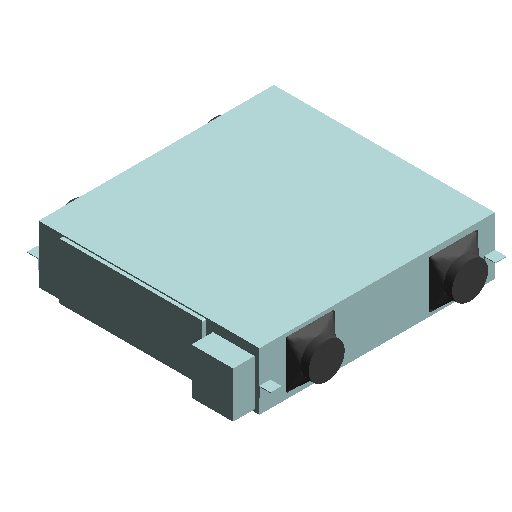

- 缩略图
- 3D
规格
默认
- 机械 - 流量
- fan_flow_supply 0L/s
- fan_flow_exhaust 0L/s
- MC Ventilation Flow 0L/s
- fan_pressure_exhaust 0Pa
- PValue 100Pa
- fan_pressure_supply 0Pa
- 可见性
- Maintenance Zone Left Visibility 0
- Maintenance Zone Back Visibility 0
- Clearance Zone Visibility 0
- Maintenance Zone Front Visibility 0
- CAT0 1
- Maintenance Zone Top Visibility 0
- Maintenance Zone Right Visibility 0
- Maintenance Zone Bottom Visibility 0
- 尺寸标注
- MZONF__ve -500mm
- LC_ 35mm
- Clearance Zone Height Depth 30mm
- L 920mm
- D 150mm
- Maintenance Zone Front Depth 500mm
- Clearance Zone Back Depth 500mm
- DISL 594mm
- Clearance Zone Under Depth 30mm
- LB_ 100mm
- W 980mm
- H 240mm
- H3 124.599998474121mm
- Maintenance Zone Under Depth 50mm
- L_ 460mm
- Maintenance Zone Back Depth 500mm
- ARC 74mm
- DEL 178mm
- W_ 490mm
- MZONU__ve -50mm
- Maintenance Zone Right Depth 200mm
- Clearance Zone Front Depth 500mm
- H4 115.800003051758mm
- R 75mm
- DER 173mm
- Maintenance Zone Over Depth 50mm
- Clearance Zone Right Depth 200mm
- DY_ 468mm
- MZONL__ve -200mm
- LC___ve -35mm
- Clearance Zone Left Depth 200mm
- DISR 597mm
- DX_ 481.5mm
- H2 102mm
- Maintenance Zone Left Depth 200mm
- H1 102mm
- 标识数据
- 类型图像 ---
- 制造商 Panasonic
- 部件代码 ---
- 成本 ---
- 注释记号 ---
- 说明 薄型全热交换机
- 类型注释 ---
- URL ---
- 型号 ---
- 机械
- QmdConnectorList 221;D;231;D;241;D;251;D
- MC Cooling Flow 0L/s
- MC Piping Flow 0L/s
