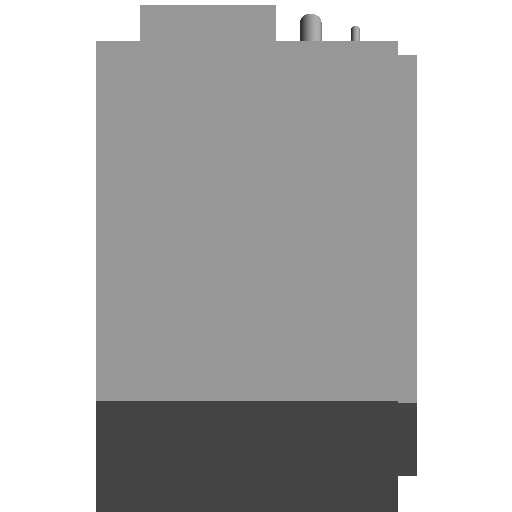

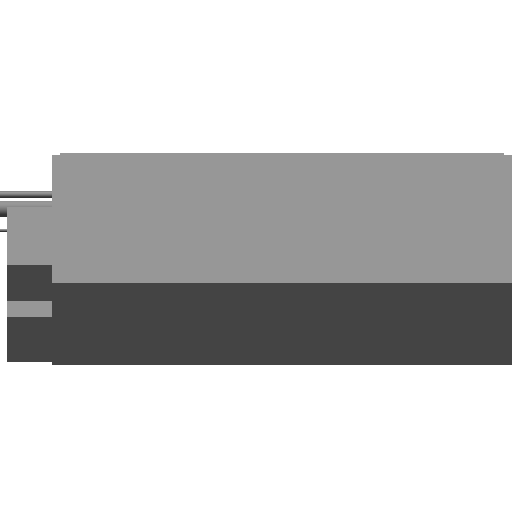

- 缩略图
- 3D
规格
2.0HP
- 常规
- Uniclass2015Version Systems v1.9
- Product Shipment Target ---
- SpecificationReference ---
- Uniclass2015Title Split coil remote air cooled condensing units
- Specification Version Version1.0
- Revision ---
- Product Release Date ---
- SpecificationDescription ---
- OmniClassCode 23-33 17 13 11
- ProductInformation ---
- Version ---
- Uniclass2015Code Pr_70_65_03_84
- Author Panasonic
- 尺寸标注
- SA size_Height 132mm
- Clearance Zone Left Depth 1028mm
- SA size_Width 888mm
- Refrigerant Gas Pipe Diameter 12.7mm
- Refrigerant Pipe Diameter Symbol Ac
- Drain Pipe Diameter 32mm
- Depth 445mm
- Height 200mm
- RA size_Width 920mm
- Width 920mm
- Maintenance Zone Front Depth 600mm
- RA size_Height 186mm
- Refrigerant Pipe Diameter 0mm
- Refrigerant Liquid Pipe Diameter 6.35mm
- Clearance Zone Back Depth 600mm
- 文字
- Sign ACP-CIS
- Symbol ---
- Board Symbol ---
- Format Duct type
- Designation Air conditioner_Indoor unit
- Special Specifications ---
- System ---
- 机械 - 流量
- Design Heating Capacity 0kW
- Design Cooling Capacity_SensibleHeat 0kW
- Design Cooling Capacity 0kW
- 标识数据
- Update Date December 27, 2021
- 制造商 Panasonic
- 类型图像 ---
- 型号 CS-ME18D0AX11B
- 类型注释 ---
- 注释记号 ---
- 说明 Indoor unit (Ultra-thin type, built-in drain pump)
- URL https://panasonic.cn/
- Estimation_Pickup Classification ---
- Cautions The RA duct connector is only for the case of lower suction position.
- 成本 ---
- Estimation_Subject 1 Air conditioning equipment
- 部件代码 ---
- 限制条件
- Heating Capacity 6.4kW
- Cooling Capacity 5.6kW
- Airflow Rate 840m³/h
- 电气
- Interlocking ---
- Power Consumption 55W
- Phase 1
- Frequency 50Hz
- Starting Method ---
- Motor Output_Ventilator 60W
- Main Line Sign ---
- Number of Poles 1
- Start-Stop Method ---
- Heating Power Consumption 50W
- Voltage 220V
- Fire Stop ---
- Load Classification ---
- Cooling Power Consumption 50W
- 数据
- Number of Refrigerant branch unit ---
- Installation Method Ceiling embedded
- Accessories_filter ---
- Accessories ---
- Sound Power Level (dB) 38
- IFC 参数
- IfcProduct ---
- IfcTypeProduct ---
- IfcExportType AIRCONDITIONINGUNIT
- IfcExportAs IfcUnitaryEquipmentType
- 结构
- Mass 26.4kg
- Product Mass 22kg
- Operating Mass 0kg
- 可见性
- Maintenance Zone Visibility 0
- Clearance Zone Visibility 0
- 机械
- APF 0
- COP 0
- 其他
- Legal Useful Life ---
- 材质和装饰
- Material ---
- Body Material ---
分类
模型格式 rfa
适配软件
特点
上传时间 2022-01-07
构件有问题？点我反馈
构件品牌 Panasonic
