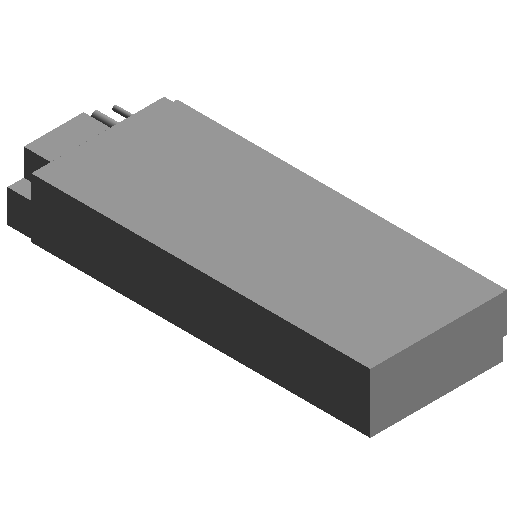

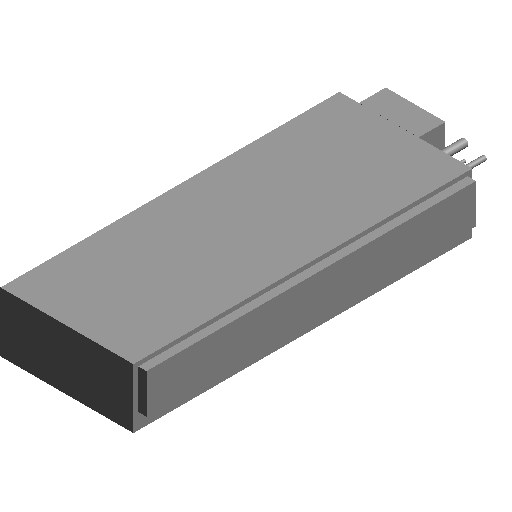

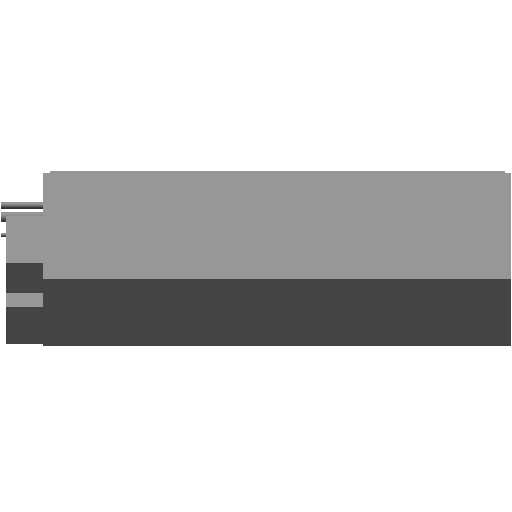

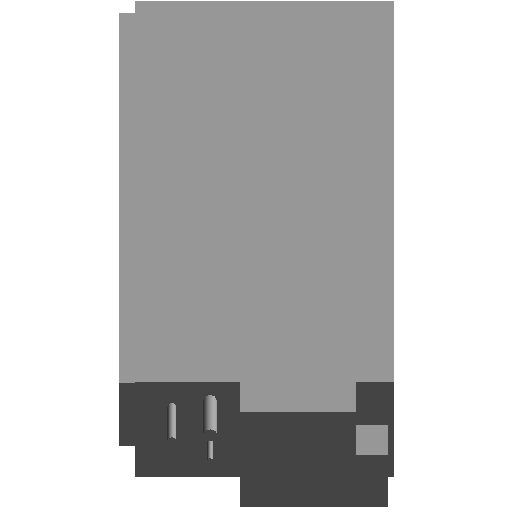

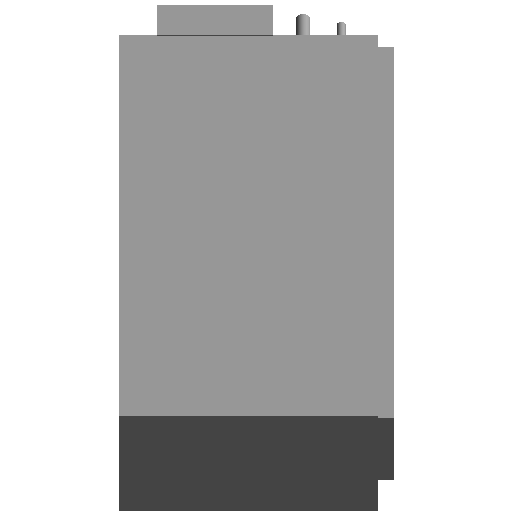

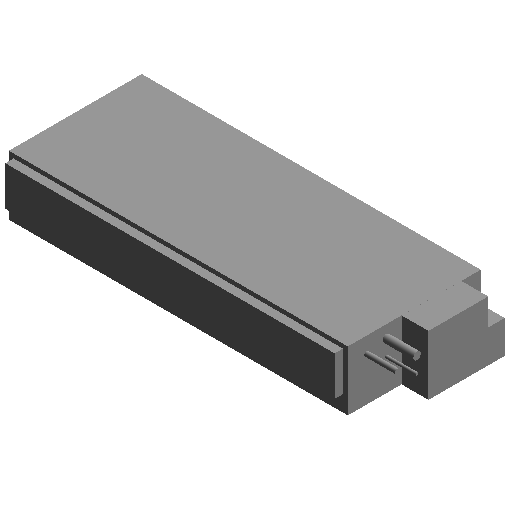

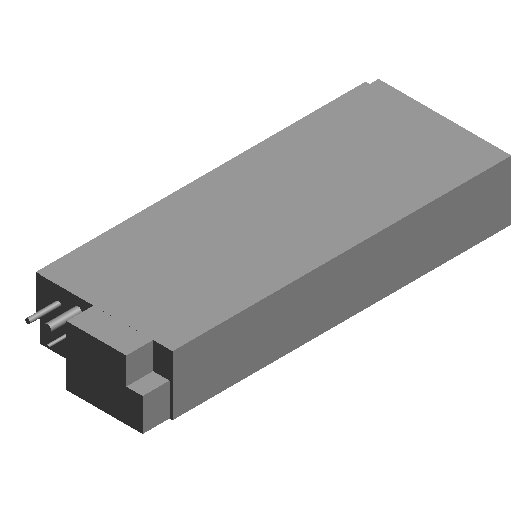

- 3D
规格
2.5HP
- 常规
- Uniclass2015Version Systems v1.9
- Product Shipment Target ---
- SpecificationReference ---
- Uniclass2015Title Split coil remote air cooled condensing units
- Specification Version Version1.0
- Author Panasonic
- Revision ---
- Product Release Date ---
- SpecificationDescription ---
- OmniClassCode 23-33 17 13 11
- ProductInformation ---
- Version ---
- Uniclass2015Code Pr_70_65_03_84
- 尺寸标注
- SA size_Height 132mm
- Clearance Zone Right Depth 200mm
- SA size_Width 1103mm
- Refrigerant Gas Pipe Diameter 15.88mm
- Refrigerant Pipe Diameter Symbol Bd
- Drain Pipe Diameter 25mm
- Depth 445mm
- Height 200mm
- RA size_Width 1135mm
- Width 1135mm
- Maintenance Zone Front Depth 690mm
- Clearance Zone Back Depth 200mm
- RA size_Height 186mm
- Refrigerant Pipe Diameter 0mm
- Refrigerant Liquid Pipe Diameter 9.52mm
- Clearance Zone Left Depth 78mm
- 文字
- Sign ACP-CIS
- Symbol ---
- Format Duct type
- Designation Air conditioner_Indoor unit
- Special Specifications ---
- System ---
- Board Symbol ---
- 机械 - 流量
- Design Heating Capacity 0kW
- Design Cooling Capacity_SensibleHeat 0kW
- Design Cooling Capacity 0kW
- 标识数据
- Update Date December 27, 2021
- 制造商 Panasonic
- 型号 CS-ME23D0AX7
- 注释记号 ---
- 类型图像 ---
- Cautions The RA duct connector is only for the case of lower suction position.
- 说明 Indoor unit (Ultra-thin type, without drain pump)
- URL https://panasonic.cn/
- Estimation_Pickup Classification ---
- 部件代码 ---
- 成本 ---
- Estimation_Subject 1 Air conditioning equipment
- 类型注释 ---
- 限制条件
- Airflow Rate 1080m³/h
- Heating Capacity 7.1kW
- Cooling Capacity 6.3kW
- 电气
- Interlocking ---
- Power Consumption 60W
- Phase 1
- Frequency 50Hz
- Starting Method ---
- Motor Output_Ventilator 60W
- Main Line Sign ---
- Number of Poles 1
- Start-Stop Method ---
- Heating Power Consumption 55W
- Voltage 220V
- Fire Stop ---
- Load Classification ---
- Cooling Power Consumption 55W
- 数据
- Number of Refrigerant branch unit ---
- Installation Method Ceiling embedded
- Accessories ---
- Accessories_filter ---
- Sound Power Level (dB) 38
- IFC 参数
- IfcProduct ---
- IfcTypeProduct ---
- IfcExportType AIRCONDITIONINGUNIT
- IfcExportAs IfcUnitaryEquipmentType
- 结构
- Mass 30kg
- Product Mass 25kg
- Operating Mass 0kg
- 可见性
- Maintenance Zone Visibility 0
- Clearance Zone Visibility 0
- 机械
- APF 0
- COP 0
- 其他
- Legal Useful Life ---
- 材质和装饰
- Body Material ---
- Material ---
