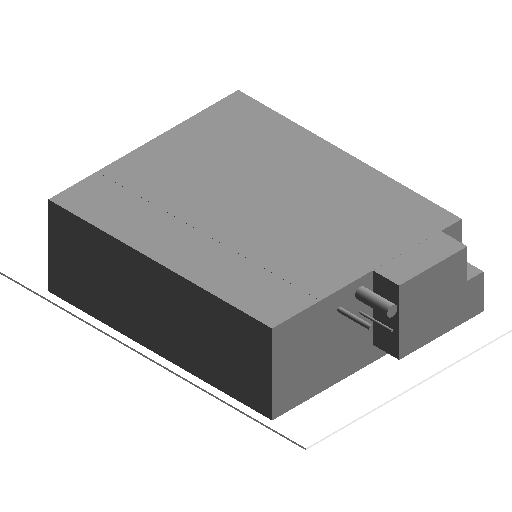

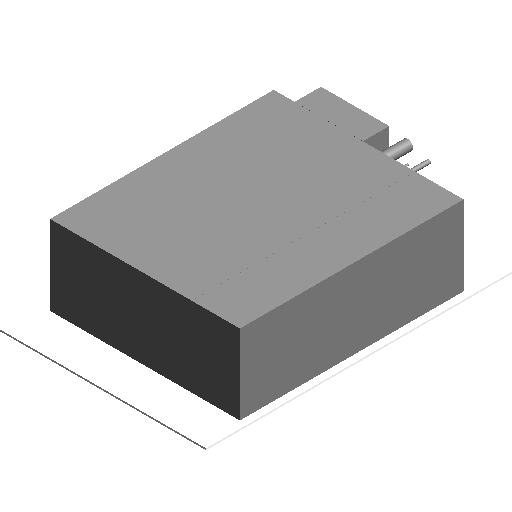

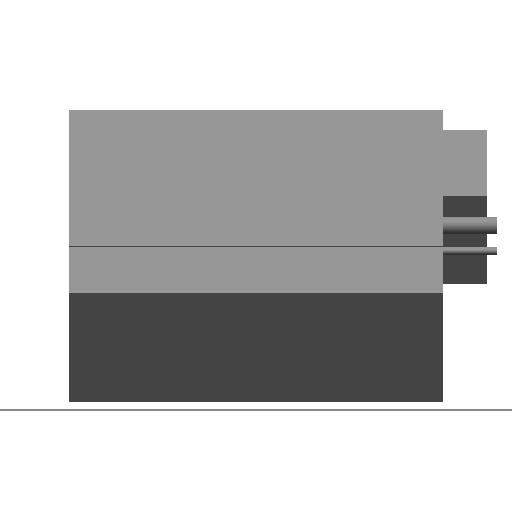

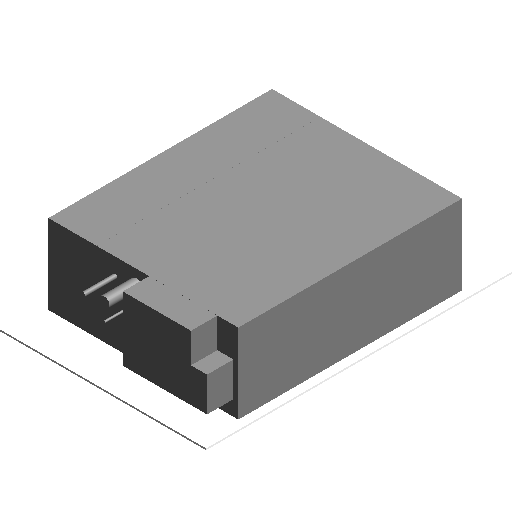

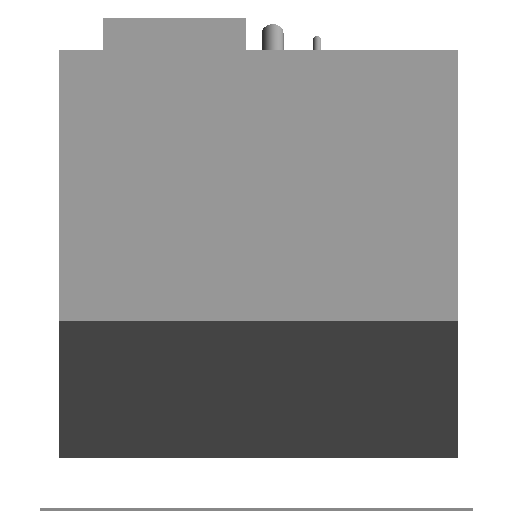

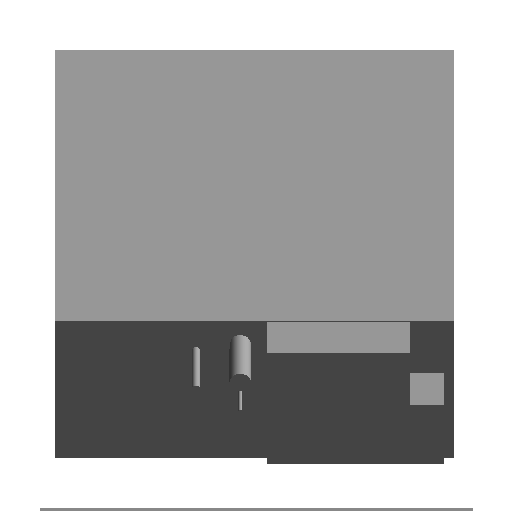

- 3D
规格
1.0HP
- 电气
- Motor Output_Ventilator 0W
- Lamp_Rated Power Consumption 20W
- Interlocking ---
- Power Consumption 40W
- Main Line Sign ---
- Frequency 50Hz
- Starting Method ---
- Load Classification ---
- Start-Stop Method ---
- Heating Power Consumption 0W
- Phase 1
- Voltage 220V
- Fire Stop ---
- Number of Poles 1
- Cooling Power Consumption 0W
- Rated Luminous Flux 1400lm
- Rated Input Capacity 60VA
- 常规
- Revision ---
- Uniclass2015Version Systems v1.9
- OmniClassCode 23-33 17 13 11
- SpecificationReference ---
- ProductInformation ---
- Uniclass2015Title Split coil remote air cooled condensing units
- SpecificationDescription ---
- Product Shipment Target ---
- Product Release Date ---
- Version ---
- Uniclass2015Code Pr_70_65_03_84
- Author Panasonic
- 数据
- Installation Method Ceiling cassette
- Accessories_filter ---
- Sound Power Level(dB(A)) 0
- Accessories ---
- Number of Refrigerant branch unit ---
- 文字
- Symbol ---
- Board Symbol ---
- Format One-way ceiling cassette type
- Designation Air conditioner_Indoor unit
- Special Specifications ---
- Sign ---
- System ---
- 机械 - 负荷
- Design Heating Capacity 0kW
- Design Cooling Capacity_SensibleHeat 0kW
- Design Cooling Capacity 0kW
- 标识数据
- Update Date December 27, 2021
- 类型图像 ---
- 类型注释 ---
- 注释记号 ---
- 说明 Indoor unit(for kitchen)
- 型号 CS-ME9D0AX9
- 制造商 Panasonic
- URL https://panasonic.cn/
- Estimation_Pickup Classification ---
- Cautions ---
- 成本 ---
- Estimation_Subject 1 Air conditioning equipment
- 部件代码 ---
- 限制条件
- Heating Capacity 3.2kW
- Cooling Capacity 2.8kW
- Airflow Rate 510m³/h
- 尺寸标注
- Maintenance Zone Right Depth 240.000000000001mm
- Refrigerant Pipe Diameter 0mm
- Clearance Zone Left Depth 224.999999999999mm
- Refrigerant Pipe Diameter Symbol Ac
- Refrigerant Gas Pipe Diameter 12.7mm
- Drain Pipe Diameter 32mm
- Depth 590mm
- Refrigerant Liquid Pipe Diameter 6.35mm
- Height 200mm
- Width 695mm
- Clearance Zone Back Depth 120mm
- IFC 参数
- IfcProduct ---
- IfcTypeProduct ---
- IfcExportType AIRCONDITIONINGUNIT
- IfcExportAs IfcUnitaryEquipmentType
- 结构
- Operating Mass 0kg
- Mass 24kg
- Product Mass 20kg
- 材质和装饰
- Material ---
- Panel Material ---
- Logo Materia ---
- Body Material ---
- 可见性
- Maintenance Zone Visibility 0
- Clearance Zone Visibility 0
- 机械
- APF 0
- COP 0
- 其他
- Legal Useful Life ---
