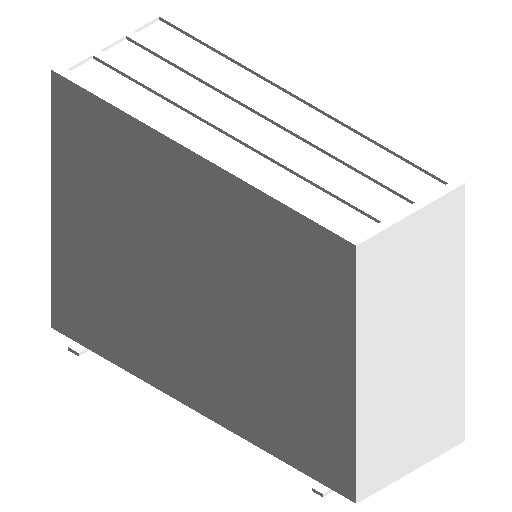

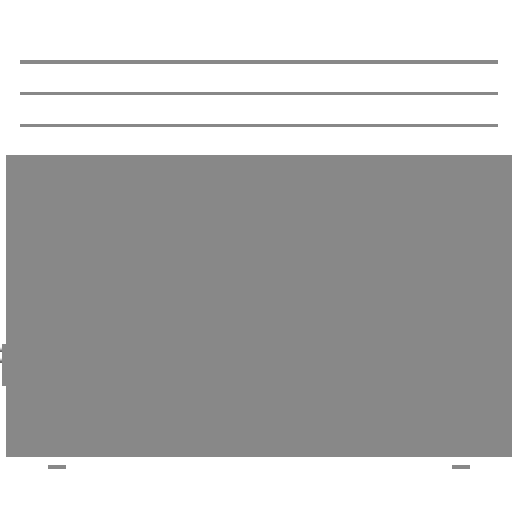

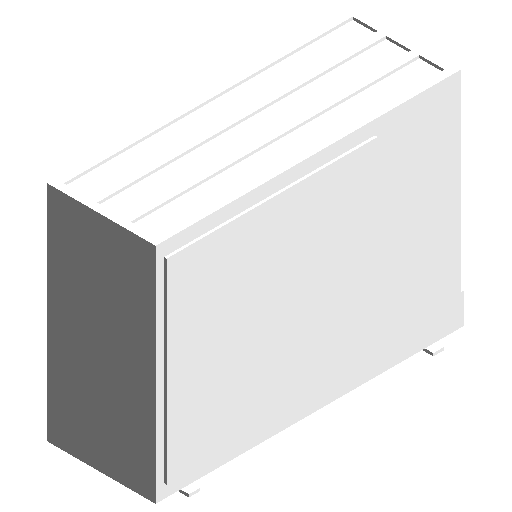

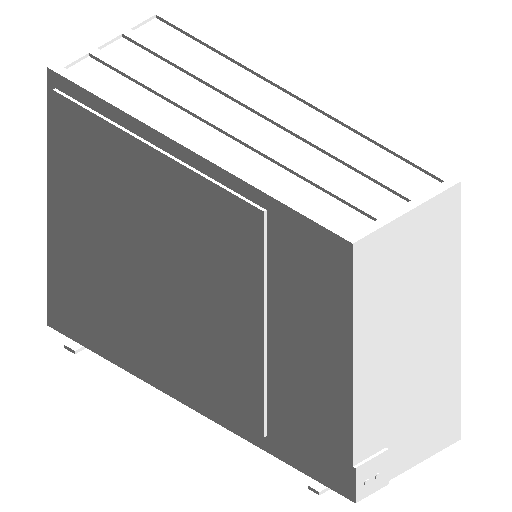

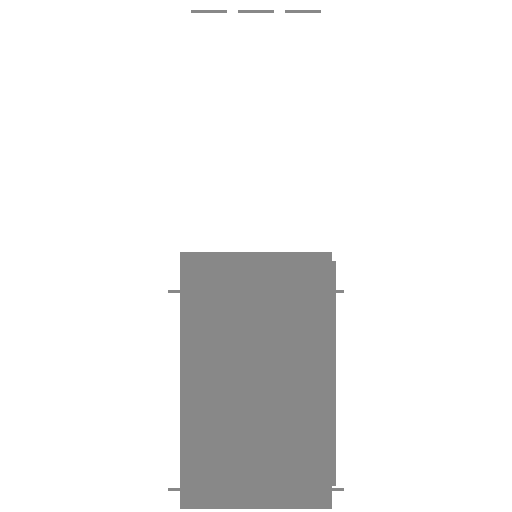

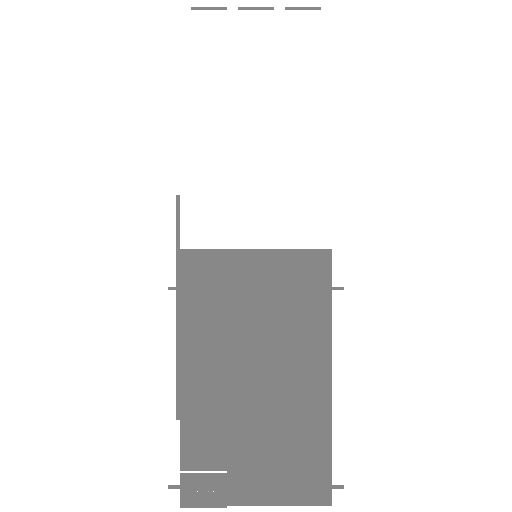

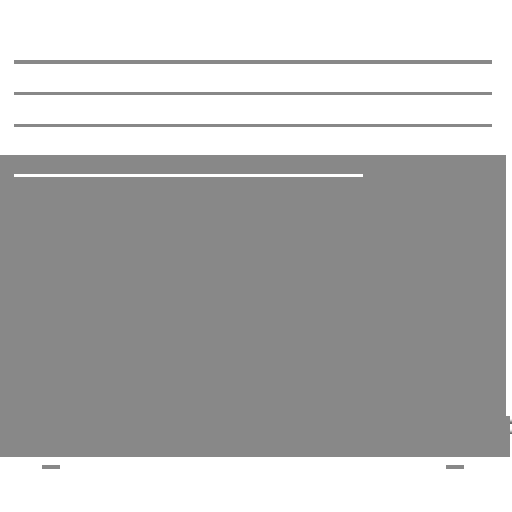

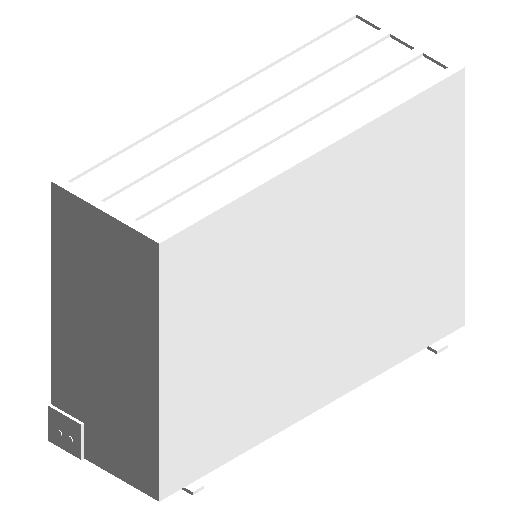

- 3D
规格
6.0HP
- 常规
- Author Panasonic
- Uniclass2015Version Systems v1.9
- Product Release Date ---
- SpecificationDescription ---
- Uniclass2015Title Split coil remote air cooled condensing units
- SpecificationReference ---
- Revision ---
- OmniClassCode 23-75 10 24 21 27 27
- Specification Version Version1.0
- Product Shipment Target ---
- ProductInformation ---
- Version ---
- Uniclass2015Code Pr_70_65_03_84
- 数据
- Maximum length of refrigerant piping 120000
- Sound Power Level(dB(A)) 0
- Refrigerant Pipe Length 0mm
- Installation Method Floor Standing
- Maximum height difference of refrigerant piping 30000
- Accessories ---
- 文字
- Special Specifications ---
- Sign ---
- System ---
- Symbol ---
- Format ---
- Board Symbol ---
- Designation Air conditioner_Outdoor unit
- 机械 - 流量
- Design Cooling Capacity_SensibleHeat 0kW
- Design Cooling Capacity 0kW
- Design Heating Capacity 0kW
- 标识数据
- Update Date January 31, 2022
- 制造商 Panasonic
- 部件代码 ---
- 类型图像 ---
- Estimation_Pickup Classification ---
- 类型注释 ---
- Estimation_Subject 1 Air conditioning equipment
- 说明 Outdoor unit
- 成本 ---
- 注释记号 ---
- URL https://panasonic.cn/
- 型号 CU-ME54BX6
- Cautions The positions of the refrigerant pipes are for reference only.
- 限制条件
- Heating Capacity 17kW
- Cooling Capacity 15.6kW
- 电气
- Load Classification ---
- Cooling Power Consumption 4530W
- Phase 1
- Heating Power Consumption 4060W
- Maximum Current 28A
- Starting Method ---
- Main Line Sign ---
- Power Consumption 4530W
- Frequency 50Hz
- Fire Stop ---
- Start-Stop Method ---
- Voltage 220V
- Number of Poles 1
- Interlocking ---
- 尺寸标注
- Clearance Zone Back Depth 200mm
- Refrigerant Liquid Pipe Diameter 9.52mm
- Height 805mm
- Clearance Zone Left Depth 150mm
- Clearance Zone Top Depth 300mm
- Clearance Zone Front Depth 1000mm
- Depth 390mm
- Refrigerant Gas Pipe Diameter 15.88mm
- Width 1100mm
- Drain Pipe Diameter 32mm
- Clearance Zone Right Depth 250mm
- Refrigerant Pipe Diameter Symbol Bd
- Refrigerant Pipe Diameter 0mm
- IFC 参数
- IfcProduct ---
- IfcExportType AIRCONDITIONINGUNIT
- IfcExportAs IfcUnitaryEquipmentType
- IfcTypeProduct ---
- 结构
- Operating Mass 0kg
- Mass 108kg
- Product Mass 90kg
- 可见性
- Clearance Zone Visibility 0
- 机械
- APF 0
- COP 0
- 其他
- Legal Useful Life ---
- 材质和装饰
- Material ---
- Body Material ---
分类
模型格式 rfa
适配软件
特点
上传时间 2022-01-27
