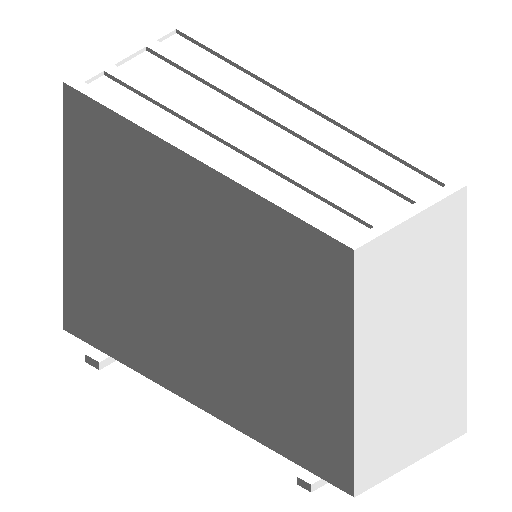

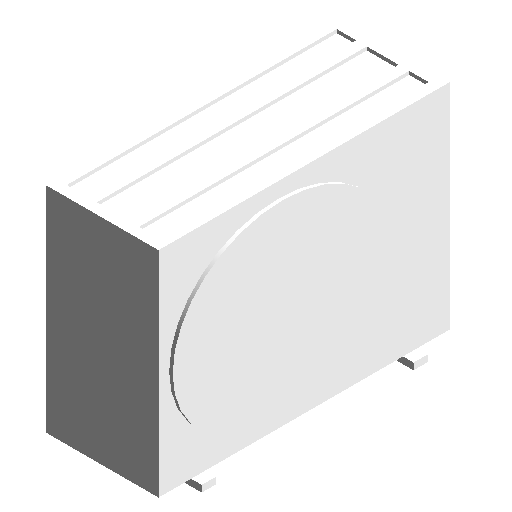

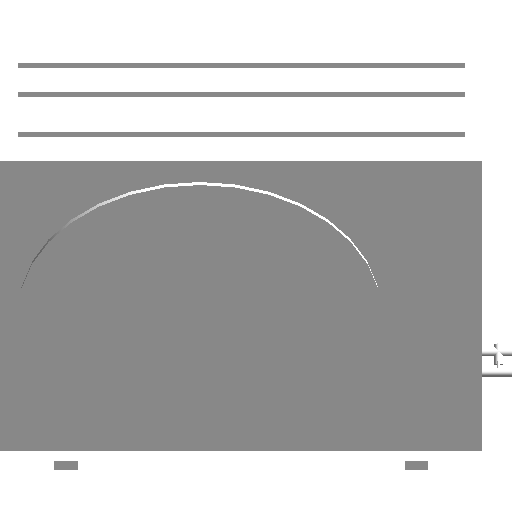

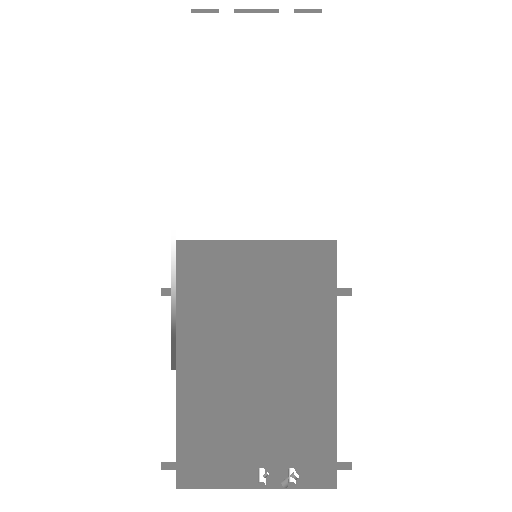

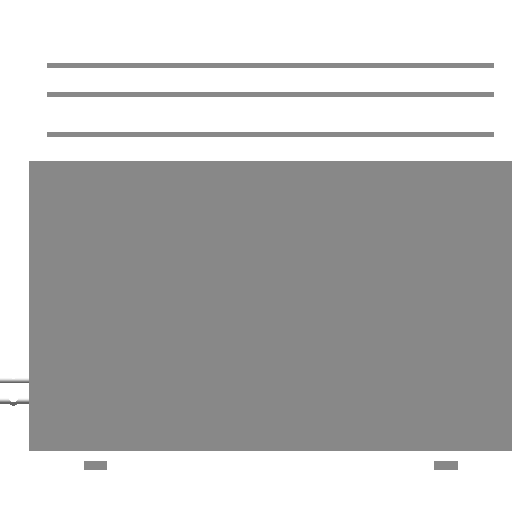

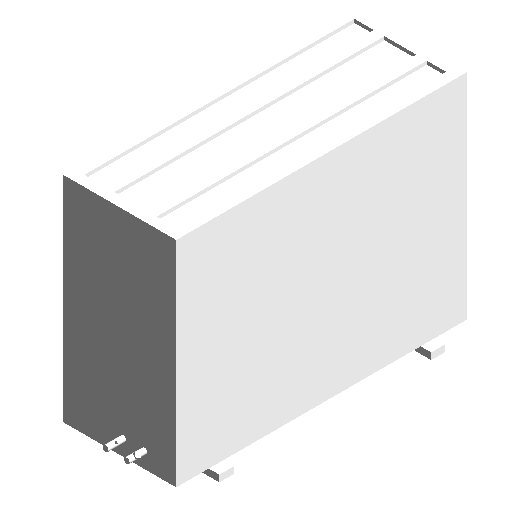

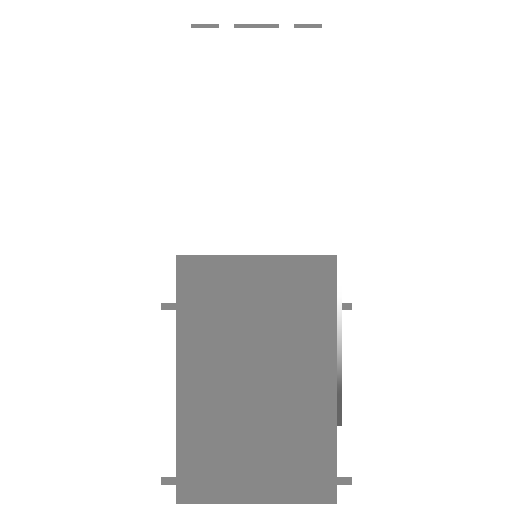

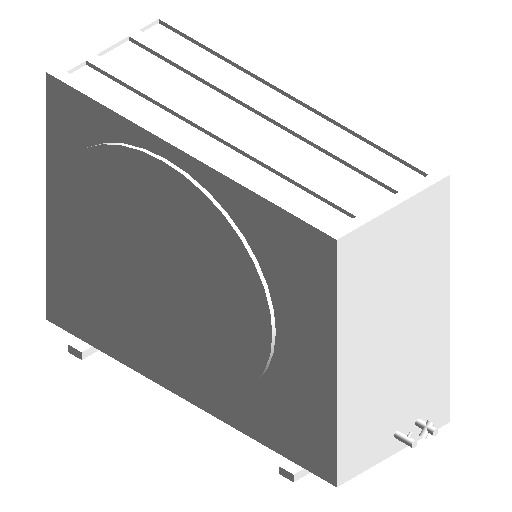

规格
3.0HP
- 常规
- Uniclass2015Version Systems v1.9
- Product Release Date ---
- SpecificationDescription ---
- Uniclass2015Title Split coil remote air cooled condensing units
- SpecificationReference ---
- Revision ---
- OmniClassCode 23-75 10 24 21 27 27
- Specification Version Version1.0
- Product Shipment Target ---
- Author Panasonic
- ProductInformation ---
- Version ---
- Uniclass2015Code Pr_70_65_03_84
- 数据
- Maximum length of refrigerant piping 15000
- Sound Power Level(dB(A)) 0
- Refrigerant Pipe Length 0mm
- Installation Method Floor Standing
- Accessories ---
- Maximum height difference of refrigerant piping 10000
- 文字
- Special Specifications ---
- Sign ---
- System ---
- Symbol ---
- Format ---
- Designation Air conditioner_Outdoor unit
- Board Symbol ---
- 机械 - 流量
- Design Cooling Capacity 0kW
- Design Cooling Capacity_SensibleHeat 0kW
- Design Heating Capacity 0kW
- 标识数据
- Update Date January 31, 2022
- 制造商 Panasonic
- 类型图像 ---
- 部件代码 ---
- Estimation_Pickup Classification ---
- Estimation_Subject 1 Air conditioning equipment
- 说明 Outdoor unit
- Cautions The positions of the refrigerant pipes are for reference only.
- 成本 ---
- URL https://panasonic.cn/
- 类型注释 ---
- 型号 CU-E27B09W
- 注释记号 ---
- 限制条件
- Cooling Capacity 7.2kW
- Heating Capacity 8.1kW
- 电气
- Load Classification ---
- Phase 1
- Heating Power Consumption 2440W
- Maximum Current 17.5A
- Starting Method ---
- Main Line Sign ---
- Power Consumption 3640W
- Frequency 50Hz
- Cooling Power Consumption 2800W
- Fire Stop ---
- Start-Stop Method ---
- Voltage 220V
- Number of Poles 1
- Interlocking ---
- 尺寸标注
- Refrigerant Liquid Pipe Diameter 6.35mm
- Height 626mm
- Depth 320mm
- Clearance Zone Front Depth 1000mm
- Refrigerant Gas Pipe Diameter 15.88mm
- Width 825mm
- Clearance Zone Back Depth 100mm
- Clearance Zone Left Depth 100mm
- Refrigerant Pipe Diameter Symbol Ad
- Refrigerant Pipe Diameter 0mm
- IFC 参数
- IfcProduct ---
- IfcExportType AIRCONDITIONINGUNIT
- IfcExportAs IfcUnitaryEquipmentType
- IfcTypeProduct ---
- 结构
- Operating Mass 0kg
- Mass 45.6kg
- Product Mass 38kg
- 可见性
- Clearance Zone Visibility 0
- 机械
- COP 0
- APF 0
- 其他
- Legal Useful Life ---
- 材质和装饰
- Body Material ---
- Material ---
分类
模型格式 rfa
适配软件
特点
上传时间 2022-01-27
构件有问题？点我反馈
构件品牌 Panasonic
