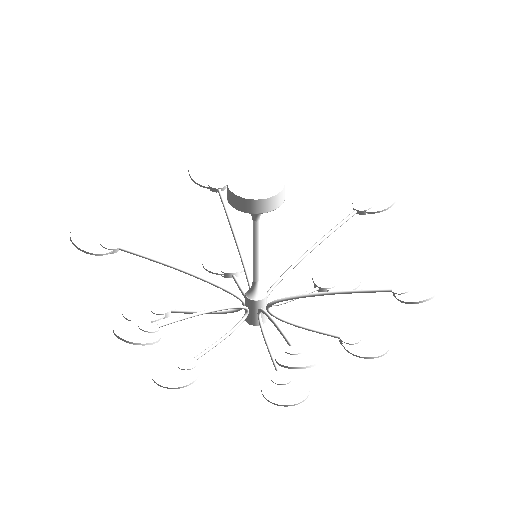

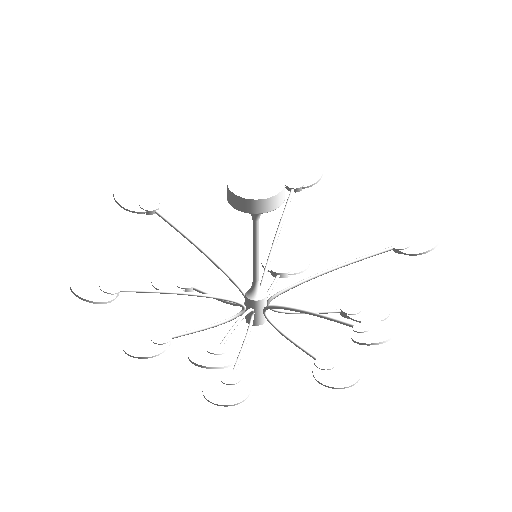

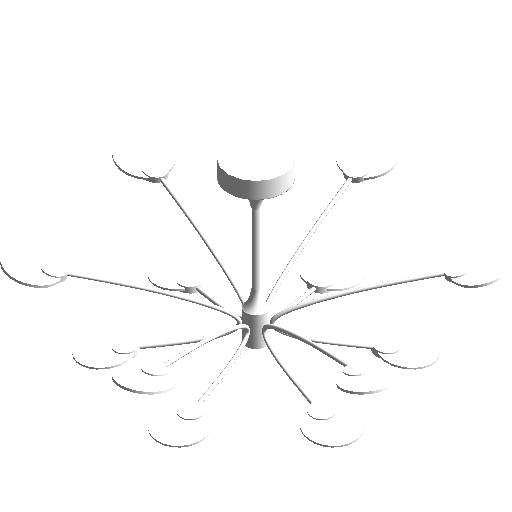

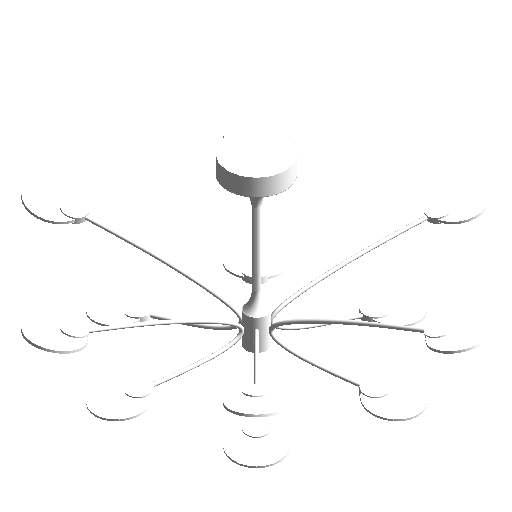

- 3D
规格
HHLZ8606
- 电气 - 照明
- Rated Input Current 0A
- Intrinsic Energy Consumption Efficiency(lm/W) 50
- 使用系数 ---
- 计算使用系数 1
- Average Production Rating (Ra) 90
- Rated Luminous Flux 4500lm
- 常规
- Product Shipment Target ---
- OmniClassCode 23.80.70.11.14.17
- Product Release Date ---
- Uniclass2015Version Systems v1.9
- Revision ---
- SpecificationDescription ---
- ProductInformation ---
- Version ---
- Uniclass2015Code Pr_70_70_48_85
- SpecificationReference ---
- Uniclass2015Title Surface luminaires
- Author Panasonic
- 文字
- Symbol ---
- System ---
- Designation Chandelier
- Format ---
- Special Specifications ---
- Sign ---
- 标识数据
- 制造商 Panasonic
- Estimation_Pickup Classification ---
- 类型图像 ---
- 注释记号 ---
- URL https://panasonic.cn/
- 成本 ---
- 类型注释 ---
- Update Date January 31, 2022
- Estimation_Subject 1 Electric Lighting Equipment
- 说明 Chandelier
- 型号 HHLZ8606
- 部件代码 ---
- 电气
- 灯 LED
- Load Classification ---
- 瓦特备注 ---
- Phase 1
- Frequency 50Hz
- Number of Poles 1
- Rated Input Capacity 94.7368421052632VA
- Rated Power Consumption 90W
- Power Factor 95%
- Rated Input Voltage 220V
- 数据
- Accessories ---
- Installation Method Ceiling-mounted
- IFC 参数
- IfcTypeProduct ---
- IfcProduct ---
- IfcExportType DIRECTIONSOURCE
- IfcExportAs IfcLightingFixtureType
- 光域
- 暗显光线色温偏移 0
- 初始颜色 0
- 颜色过滤器 16777215
- 光损失系数 0
- 初始亮度 0
- 电气 - 负荷
- 视在负荷 94.7368421052632VA
- 结构
- Mass 0kg
- Operating Mass 0kg
- Product Mass 0kg
- 其他
- Light Source Life ---
- Legal Useful Life ---
- 尺寸标注
- Width 1070mm
- Height 500mm
- 光源符号尺寸 609.6mm
- 材质和装饰
- Body Material ---
- Material ---
